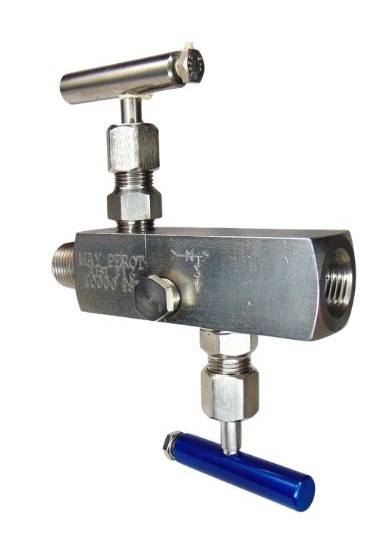

Block and Bleed Gauge Needle Valve. MNPT X HNPT. 10.000 PSI.AISI 316
Block and Bleed Gauge Needle Valve. MNPT X HNPT. 10.000 PSI. AISI 316.
Designed for use with Gauges, switches or Pressure Transmitter. These Gauge Valve incorporates Two-Valve with single outlet that combines isolation, calibration and venting
The block valve is designed to isolate a specific section of the pipeline or equipment by blocking the flow of material (such as liquids, gases, or vapors). The bleed valve, on the other hand, allows the pressure to be safely vented from the isolated section
Using a Block and Bleed Valve
A block and bleed valve is a type of valve assembly used to isolate a section of piping from the rest of the system while allowing for the safe venting of the fluid. Here’s how to use it:
Components
- Block Valve: This valve is used to stop the flow of fluid.
- Bleed Valve: This valve allows for the venting of the fluid between the block valve and the system.
Steps to Use a Block and Bleed Valve
Ensure Safety:
- Before operating, ensure that you have the appropriate personal protective equipment (PPE).
- Check that it is safe to isolate the section of the piping.
Close the Block Valve:
- Turn the handle or actuator of the block valve to the closed position. This will stop the flow of fluid to the section you want to isolate.
Open the Bleed Valve:
- Slowly open the bleed valve. This will allow any trapped fluid in the isolated section to escape safely.
- Monitor for any fluid release and ensure it is directed to a safe area.
Vent the System:
- Allow the fluid to vent completely until there is no pressure in the isolated section.
- This step is crucial to ensure safety before maintenance or inspection.
Perform Maintenance or Inspection:
- Once the section is vented and confirmed to be safe, you can proceed with any necessary maintenance or inspection.
Close the Bleed Valve:
- After completing your work, close the bleed valve to prevent any accidental leaks.
Open the Block Valve:
- Finally, open the block valve to restore the flow of fluid in the system.
Important Considerations
- Check for Leaks: After reopening the block valve, check for any leaks in the system.
- Follow Procedures: Always adhere to your facility’s operating procedures and safety guidelines.
- Regular Maintenance: Ensure regular checks and maintenance of the block and bleed valves to keep them in good working condition.
By following these steps, you can safely and effectively use a block and bleed valve in your operations.
.
